Bulk Automation Guide

This user guide explains how to use the Automation Enabler Script for bulk creation of Backup sets, Storage, Schedule plans, and Sources.
Introduction
This user guide explains how to use the Automation Enabler Script known as the 'python creator.py' utility. It helps in the bulk creation and configuration of Backup sets, Sources, and other Zmanda entities. Here, the sources are attached to backup sets, and the backup sets are created and associated with schedules and storage. It expedites the setup and backup processes of users using Zmanda at scale.

Prerequisites

  • Python 3.6 or higher version. You can run the following command to see if python is installed:
python3 --version
  • Before running the utility’s operations, ensure you have created and populated the input file using the exact name detailed in each operation.

Bulk Automation Operations

You can create the following Zmanda elements using the Automation enabler script:
  • Backup sets (create and update)
  • Sources (create)
  • Storage (create)
  • Schedule plans (create)
  • Read lists of Backup sets, Sources, Storages, and Schedules (read)
Please note that you must fill up the corresponding CSV forms to use the script.

Use Cases

The following use cases can be simplified using this utility, running the operations detailed in this document. You can run the script and enter the operation number to complete the operation.
Number associated with the operation
  1. 1.
    Fresh Zmanda Instance set-up
    1. 1.
      Run the script and press 10 to create backup servers.
    2. 2.
      Press 9 to create the storage
    3. 3.
      Press 11 to create schedules (Optional, much simpler through ZMC)
    4. 4.
      Press 2 to create backup sets
    5. 5.
      Press 3 to create sources
    At this point, you’re ready to let your backups run based on the schedules created (if the optional third step was done). You can also trigger an ad-hoc backup operation through ZMC or the utilities operation #6 – Backup Now (The user can also change the default backup config through #4 – Backup How before running backup now). Caution: Please note that many of the inputs required for these steps will be generated through the previous steps. It is recommended to run fetch operations for existing entities. Example: when a user creates a Backupset, that backup set id will be required when creating Sources. To get that ID, the user should run Operation # 1 – Fetch Backup sets.
  2. 2.
    Update existing Zmanda Instance adding large numbers of clients/servers to be protected
    1. 1.
      First, fetch the existing backup sets to capture the IDs to be used for the new clients/sources that will be added. Run operation #1 – Fetch Backup sets.
    2. 2.
      Second, decide if the existing backup set will be used to map the clients/sources to be added. If user wants to bind these to a new backup set, they can run operation #2 – Create Backup sets.
    3. 3.
      Third, create the new clients/sources; the user can run operation #3 – Create Sources. At this point, the user can let the sources be backed up automatically through the schedule selected for the Backupset the clients/sources are mapped to. Alternatively, the user can run an ad-hoc backup and run operation #6 – Backup Now (the user can also change the default backup config through #4 – Backup How before running a backup now).

Creating and configuring Backup Sets

This operation covers both the backup set creation as well as configuration of the backup sets up to Backup Where. The process progresses as indicated in the below flowchart.
Backup sets creation and configuration| Zmanda
Backup sets creation and configuration
  1. 1.
    You begin by filling up the CSV sheet with the backup set data. The columns in the CSV form will be discussed shortly.
  2. 2.
    It is then fed to the python3 creator.py script.
  3. 3.
    Please authenticate yourself by providing your credentials to proceed. You will also need to provide the ZMC IP address and ZMC port.
  4. 4.
    Select option 2 to create backup sets.
  5. 5.
    The script begins to read the data from the CSV file and performs asynchronous API calls for creating the backup sets. For the backup sets created, the backup where configuration is also completed. The storage device bundled with the backup set will be used for the configuration.
You can evaluate the outcome of the script operation via the following reports compiled under the results directory:
  • results_backupset_create.csv: Backup set creation report
  • results_backupset_where.csv: Backup where configuration report
results_backupset_create.csv report | Zmanda
results_backupset_create.csv report

Columns within backupsets_create.csv file

Screenshot of backupsets_create.csv | Zmanda
CSV file for backup set creation
Caution: Please note that the input file should have the following name for the script to process it successfully “backupsets_create.csv”.
backupset_name
This allows you to specify a name for the backupset name you want to create.
String
· Minimum 5 characters.
· Not more than 64 characters.
· It can have only alphabets, numbers, '-', '.' and '_'.
· Cannot start or end with special characters or begin with zmc_test.
Yes
backupset_desc
Description is optional and intended to serve as a reminder of what type of backups are included or where it is configured.
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
No
comments
Comments are optional and intended to serve as a reminder as to why the backup set was created.
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
No
storage_device
This allows you to specify a storage id of the storage that you want to link with the backup set.
To get the information of existing storage and their corresponding ids, choose 8 in the options and get a CSV at results/storages_information.csv, which contains the existing storage devices.
Integer
Provide the storage id.
Yes
schedule
This allows you to specify the schedule id with which you want to link your backup set.
Ex: In the above table, opendrives_set_10 is linked to schedule id 2.
To get the information of existing schedules, select 5 in the options and get a CSV at results/schedule_information.csv, which contains the existing schedules.
Integer
Schedule id of the existing schedule else, leave it blank.
No
aebackup_server
Allows you to specify the server id to which the storage is linked.
To get the information of existing servers and their corresponding ids, choose 7 in the options and get a CSV at results/servers_information.csv, which contains the existing storage devices.
Integer
Backupserver id
Yes
active
If the schedule is not specified(blank), set it as FALSE.
If the schedule is linked to the backup set and you wish to run the backups as per the linked schedule, set it as TRUE.
Boolean Value
TRUE
FALSE
Yes

Backupset How configuration

The backup how defines the key internal parameters that control how the backup set will run after it has been activated. Mail can be configured to receive the backup and restore notifications via emails.
backupset
This allows you to specify the backup set id.
Integer
Yes
taperalgo
This allows you to specify the algorithm that determines the order in which the completed backup images are moved from the holding disk to the backup media.
String
Options: firstfit, largest, largestfit, smallest, last
Description
· "first": First in - first out.
· “firstfit”: The first backup image that will fit on the current media volume.
· "largest": The largest backup image first.
· “largestfit”: The largest backup image that will fit on the current media volume.
· “smallest”: The smallest backup image first.
· “last”: Last in - first out.
Yes
Inparallel
(Server parallel backups)
This allows you to set the number of parallel data backups that are performed from the Amanda clients to the holding disk in a backup run.
Integer
Yes
Maxdumps
(client parallel backups)
This allows you to set the number of parallel backups performed from an Amanda client. The default value is 1, which specifies that all Sources on a client are backed up sequentially.
Integer
Example: 3
Yes
dumporder
This allows you to assign priorities to each of the parallel backup processes.
s -> smallest size first
S -> biggest size first
t -> smallest time first
T -> biggest time first
b -> smallest bandwidth first
B -> biggest bandwidth first
A string like "sssS" which represents the priority order for four parallel backups indicates that
three dumpers will seek the smallest size hosts
while one dumper will seek the biggest size host to backup.
Yes
taper_parallel_write
This allows you to specify the maximum number of dumpers that will fetch data from the client.
This parameter is unaffected by the inparallel and maxdumps colums values. [verified only for disk]
Integer
Yes
reserved_tcp_port
It allows you to specify the port range to use on Amanda server to connect to clients.
Amanda will use all the ports in the range that are not bound by another process or not reserved in the /etc/services file.
Increase the value if you are increasing the value of inparallel column.
Example:
800-850
Yes
send_amreport_on
This allows you to specify the type of notifications you wat to receive via email.
String
all, error, never
Values
all - Email recipients will be notified about successful/failure of the backup with a detailed report, same as in the Management Console.
error - Email recipients will be notified only when the backup fails with error details.
never - No notification emails will be sent upon selecting this option.
Yes
mailto
This allows you to specify the email addresses to which the emails are to be sent if the mail server is configured.
To set up the mail server, please go through the detailed documentation in this link.
String
Specify the email address separated by comma.
Yes
etimeout
This allows you to specify the magnitude of time for limiting the time ZMC will spend on the Planning phase of the backup process. The Amanda backup process first estimates the backup size for each Source configured in the backup set.
Estimation for all Sources in the backup set is done in parallel.
Integer
Yes
etimeout_display
This allows you to specify the unit of etimeout value in minutes/seconds/hours/
String
Values
· minutes
· seconds
· hours
Yes
ctimeout
This allows you to specify the magnitude of time within which the client verification should be completed.
Integer
Yes
ctimeout_display
This allows you to specify the unit of ctimeout value in minutes/seconds/hours/
String
Values
· minutes
· seconds
· hours
Yes
dtimeout
This allows you to specify the time limit that the Amanda server will wait (during the backup data transfer phase) for a client to begin to respond to a backup request.
Integer
Yes
dtimeout_display
This allows you to specify the unit of dtimeout value in minutes/seconds/hours/
String
Values
· minutes
· seconds
· hours
Yes
To configure the backup how section of the backup sets, you need to fill up the backupsets_how CSV file.
Columns within backupsets_how.csv file
CSV file for Backup How configuration
Caution: Please note that the input file should have the following name for the script to process it successfully “backupsets_how.csv”.

Source Creation

This operation covers the source creation. The process progresses as indicated in the below flowchart. We have considered a Linux type for illustration.
Source creation flowchart | Zmanda
Source creation flowchart
  1. 1.
    You begin by filling up the sources_create.csv sheet with the source data. The columns in the CSV form will be discussed shortly.
  2. 2.
    It is then fed to the python3 creator.py script.
  3. 3.
    Select option 3 to create sources.
  4. 4.
    The script begins to read the data from the CSV file and performs asynchronous API calls for creating the sources.
You can evaluate the outcome of the script operation via the results_sources_create.csv file for the creation of the source, which provides the status of the operation. The report is generated under the results directory.

Columns within sources_create.csv file

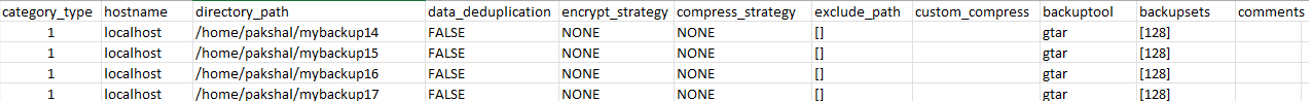

Screenshot of sources_create.csv | Zmanda
CSV file for source creation
All of the columns are mandatory.
Caution: Please note that the input file should have the following name for the script to process it successfully “sources_create.csv”.
category_type
This allows you to specify the category id for the source type.
The category id for Linux type source is 1.
Integer
Values
Filesystem
1: Linux
hostname
This allows you to specify or select a hostname (or IP address) to back up.
An error is displayed if you attempt to add a host/directory combination that already exists in the backup set.
String
Ex: 192.168.53.187
directory_path
This allows you to specify the directory path you want to backup.
There is a limit of 255 characters for a directory name.
String
data_deduplication
This allows you to turn on/off data duplication
If it is set as TRUE, then encrypt_strategy
value is overridden to NONE.
Boolean field
TRUE
FALSE
encrypt_strategy
This allows you to specify whether encryption should be enabled and, if yes, where it should be performed.
Backup encryption can be performed on the server or on the client. 
It is important to store encryption key passphrases and certificates securely.
Backups cannot be retrieved if the passphrase files or certificates are lost. 
String
Accepted
values:
· SERVER
· CLIENT
· NONE
compress_strategy
This allows you to specify whether compression should be enabled and, if yes, what type of compression should be performed.
Compression of the data can be done on the Amanda server or client.
· Fast compression provides smaller backup window.
· Best compression likely provides a smaller backup size.
· Custom compression provides you an option to specify different compression command. You should specify it in custom_compress column.
String
Accepted values:
· SERVER FAST
· NONE
· CLIENT FAST
· CLIENT BEST CLIENT CUSTOM
· SERVER FAST
· SERVER BEST SERVER CUSTOM
exclude_path
It allows you to specify the list of file paths to be excluded from the backup.
Specify the file paths inside [].
String
Example: [“/home/john/mybackup2/”,”/home/john/mybackup3/”]
In the above example, the directories specified in the list will be excluded from the backup.
If you do not want to exclude anything specify the value as []
apply_global_exclusion
A Boolean value which specifies whether the global exclusion policy should be applied for the source or not.
Boolean field
TRUE
FALSE
custom_compress
It is used if user specifies CLIENT CUSTOM or SERVER CUSTOM in compress_strategy field.
It is used to specify the path to the compression program.
String
Example
bin/pigz
backuptool
The Linux/Solaris/Mac OS X filesystems use the GNU-tar utility, which supports exclude patterns.
String
gtar
backupsets
This allows you to specify the list of backup set ids you want to link to the source.
Example
[1,2]
Here the backupset whose id is 1 and 2 are linked to the source.
comments
This allows you to include any comments on the Source.
String

Backup Now Configuration

The backup now configuration allows you to trigger the backups for the backup sets specified in the CSV file.

Steps to trigger Backup

  1. 1.
    You begin by filling up the backupsets_now.csv file. It contains the following columns.
  2. 2.
    It is then fed to the python3 creator.py script .
  3. 3.
    Select option 6 to configure Backup now.
Screenshot of backupsets_now.csv | Zmanda
CSV file for triggering backups
All of the columns are mandatory.
Caution: Please note that the input file should have the following name for the script to process it successfully “backupsets_now.csv”.
backup_level
  • full - Amanda would trigger a full backup for all the sources linked to the backup set for which the backup is now performed.
  • incremental – Amanda would take incremental backup of the sources, given that at least one full backup of the source exists.
  • smart – Amanda intelligently decides what type of backup level to trigger.
String
Values
· full
· incremental
· smart
backupset
This allows you to specify the backup set names for which the backup is to be performed for the sources associated with the backup set.
String
Ex: opendrives_set_5
The script begins to read the data from the CSV file and performs asynchronous API calls for triggering the backups for the specified backup sets.

Fetch Existing Backup Sets Information

To fetch information about existing backup sets, you should execute the script and choose option “1”. Then, the information of all the backup sets will be fetched and put in the path “/results/results_all_backupsets.csv”.
Screenshot of results_all_backupsets.csv | Zmanda
Screenshot of results_all_backupsets.csv

Fetch Existing Server Information

To fetch information about existing servers, you should execute the script and choose option “7”. The information on servers will be fetched and placed in the path “/results/servers_information.csv”.
Screenshot of servers_information.csv | Zmanda
Screenshot of servers_information.csv

Fetch Existing Schedules Information

To fetch information about existing schedule plans, you should execute the script and choose option “5”. The information on schedules is fetched and put in the path “results/schedule_information.csv”.
The main purpose of using this operation is to get the mapping between the schedule name and schedule id so that the end user can attach the schedule id during backup set creation.
Screenshot of schedule_information.csv | Zmanda
Screenshot of schedule_information.csv

Fetch Existing Storage Information

To fetch information about existing storage, you should execute the script and choose option “8”. The information of storage is fetched and put in the path “results/storages_information.csv.
The main purpose of using this operation is to get the mapping between the storage name and storage id so that the end user can attach the storage id during backup set creation.
Screenshot of storages_information.csv | Zmanda
Screenshot of storages_information.csv

Creation of Schedule Plan

This operation covers the schedule creation. The process progresses as indicated in the below flowchart.
Schedule plan creation flowchart | Zmanda
Schedule plan creation flowchart
  1. 1.
    You begin by filling up the schedule_create.csv sheet with the schedule data. The columns in the CSV form will be discussed shortly.
  2. 2.
    It is then fed to the python3 creator.py script.
  3. 3.
    Please authenticate yourself by providing your credentials to proceed. You will also need to provide the ZMC IP address and ZMC port.
  4. 4.
    Select option 11 to schedule.
  5. 5.
    The script begins to read the data from the CSV file and performs synchronous API calls for creating the schedule.
You can evaluate the outcome of the operation using the results_schedule_create.csv report, which provides the status of the operation. The report is generated under the results directory.

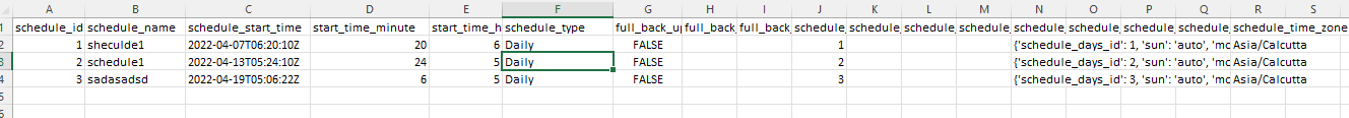

Screenshots of results_schedule_create.csv | Zmanda
Screenshots of results_schedule_create.csv
To fetch all the previously added records/schedules use choice 11. The results/report is generated in schedule_information.csv under results.
Screenshots of schedule_information.csv

Columns within schedule_create.csv file

Screenshot of schedule_create.csv file
Caution: Please note that the input file should have the following name for the script to process it successfully “schedule_create.csv”.
schedule_name
This allows you to specify the schedule name for the schedule you want to create.
String
Value 1. Minimum 7 characters. 2. Not more than 64 characters. 3. It can have only alphabets, numbers, '-' and '_'. 4. Cannot start or end with special characters.
Example: Week-test
Yes
schedule_start_time
This allows you to specify the schedule start time for the schedule.
String
Value Format : Date(yyyy-mm-dd)T(hh:mm:ss)
Example: Z2022-06-01T11:36:38Z T is the separator that the ISO 8601 combined date-time format requires. Z stands for the Zero time zone, Coordinated Universal Time (UTC).
Example: To set time as 2.30 p.m. IST -> 09.00 a.m. UTC should be entered.
Yes
scheduled_zone
This allows you to specify a time zone for your schedule.
String
Example: Asia/Calcutta
Yes
start_time_minute
This allows you to specify the start time in minutes in UTC.
It will be automatically converted into the time zone you specified earlier.
Integer
Example: 11 (UTC Time)
Yes
start_time_hours
This allows you to specify start time in hours in UTC.
It will be automatically converted into the time zone you specified earlier.
Integer Example: 12 (UTC Time)
Yes
schedule_type
This allows you to specify the Schedule Type for your schedule
String
Value Choose between Daily, Weekly, Monthly_Weeks, Monthly_Days
Yes
full_back_up_time_specified
This allows you to specify True/False if you want full backup time
String
Value
Either” true” or “false”
Yes
full_back_up_start_time_hours
This allows you to specify start time in hours for full backup (Is used only when full_back_up_time_specified is set to True)
Integer Example: 11 (UTC Time)
No (Conditional)
full_back_up_start_time_minute
This allows you to specify start time in minutes for full backup (Is used only when full_back_up_time_specified is set to True)
Integer Example: 30 (UTC Time)
No (Conditional)
weeks_to_backup
This allows you to specify the weeks you want backup to happen [Note: Only for Weekly and Monthly_weeks schedule type]
Integer or String containing Integers
Permitted values:
1 to 5 When single value entered use single digit integer. Example 1: 2 When multiple values use string with values Example 2: "1,2,5"
Yes
months_to_backup
This allows you to specify the months you want backup to happen [Note: Only for Monthly and Monthly_Days schedule type]
String
Permitted values : jan to dec (first 3 chars of each month) Example 1 - "jan" Example 2 - "jan,nov,oct,aug"
Yes
backup_type_full
For Daily, Weekly, Monthly_weeks : This allows you to specify the days of week you want backup type to be FULL.
String Permitted Values:
mon to sun (first 3 chars of each day)
Example 1 : "mon" Example 2 : "mon,wed"
Yes (only if you want backup to be Full)
(Continued from the previous cell)
For Monthly_days : This allows you to specify the days you want backup type to be FULL.
Integer or String containing Integers
Permitted values 1 to 31
When single value entered use single digit integer. Example 1: 2
When multiple values use string with values Example 2: "19,15"
Yes (only if you want backup to be Full)
backup_type_incremental
For Daily, Weekly, Monthly_weeks : This allows you to specify the days of week you want backup type to be INCREMENTAL.
String
Permitted Values
mon to sun (first 3 chars of each day)
Example 1 : "mon" Example 2 : "mon,wed"
Yes (only if you want backup to be Incremental)
(Continued from the previous cell)
For Monthly_days : This allows you to specify the days you want backup type to be INCREMENTAL.
Integer or String containing Integers
Permitted values
1 to 31 When single value entered use single digit integer.
Example 1: 2 When multiple values use string with values Example 2: "19,15"
Yes (only if you want backup to be Incremental)
backup_type_nobackup
For Daily, Weekly, Monthly_weeks : This allows you to specify the days of week you want backup type to be NO BACKUP
String
Permitted Values
mon to sun (first 3 chars of each day)
Example 1 : "mon" Example 2 : "mon,wed"
Yes (only if you want backup to be No backup)
(Continued from the previous cell)
For Monthly_days : This allows you to specify the days you want backup type to be FULL.
Integer or String containing Integers
Permitted values 1 to 31 When single value entered use single digit integer. Example 1: 2
When multiple values use string with values Example - "19,15"
Yes (only if you want backup to be No backup)

Creation of Storage

This operation covers the storage creation. The process progresses as indicated in the below flowchart.
Storage creation flowchart | Zmanda
Storage creation flowchart
  1. 1.
    You begin by filling up the storage_create.csv sheet with the schedule data. The columns in the CSV form will be discussed shortly.
  2. 2.
    It is then fed to the python3 creator.py script.
  3. 3.
    Please authenticate yourself by providing your credentials to proceed. You will also need to provide the ZMC IP address and ZMC port.
  4. 4.
    Select option 9 to create storage.
  5. 5.
    The script begins to read the data from the CSV file and performs asynchronous API calls for creating the storage.
You can evaluate the outcome of the operation using the storage_results.csv report for the creation of storage which provides the status of the operation. The report is generated under the results directory.

Columns within storage_create.csv file

Screenshot of storage_create.csv | Zmanda
Screenshot of storage_create.csv
Caution: Please note that the input file should have the following name for the script to process it successfully “storage_create.csv".
All of the columns are mandatory.
ae_backup_servers
This allows you to specify the id of the backup server being used.
Integer
Ex: 1
storage_device_name
This allows you to specify a name for the storage.
If you attempt to create storage that already exists, an error is displayed.
String
Ex: store1
root path
This allows you to specify the root path you want to create storage in.
It is the directory where the backup images will be stored.
This is normally specified when the device was configured in the Storages page
String
Ex: /var/lib/amanda/disk
comments
This allows you to specify comments. Comments are optional and are intended to serve as a reminder as to why the backup set was created.
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
category_type
This allows you to specify the category type of the storage device (simple disk, vtape).
Integer
Ex: 5
Values
Simple disk: 5
Vtape: 4
output_buffer_abbr
This allows you to specify the unit of storage for the below output buffer size
String
Values
KiB: k
MiB: m
output_buffer_size
This allows you to specify the amount of memory used by Amanda to hold data as it is read from the network or disk before it is written to the output device.
Integer

Creation of Server

This operation covers the server creation. The process progresses as indicated in the below flowchart.
Creation of server flowchart | Zmanda
Creation of server flowchart
  1. 1.
    You begin by filling up the server_create.csv sheet with the schedule data. The columns in the CSV form will be discussed shortly.
  2. 2.
    It is then fed to the python3 creator.py script.
  3. 3.
    Please authenticate yourself by providing your credentials to proceed. You will also need to provide the ZMC IP address and ZMC port.
  4. 4.
    Select option 10 to create storage.
  5. 5.
    The script begins to read the data from the CSV file and performs asynchronous API calls for creating the server.
You can evaluate the outcome of the operation using the server_results.csv report, which provides the status of the operation. The report is generated under the results directory.

Columns within server_create.csv file

Screenshot of server_create.csv | Zmanda
Screenshot of server_create.csv
All of the columns are mandatory.
Caution: Please note that the input file should have the following name for the script to process it successfully “server_create.csv”.
ae_version
This allows you to specify the version of the ae server
Integer
Ex: 1
port
This allows you to specify the port number of the machine being used.
Integer
Ex: 8008
server_hostname
This allows you to specify the name of the host server
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
server_ip
This allows you to specify the IP address of the ae server.
User can’t add same server multiple times.
String
Only numbers and '.' are allowed.
Ex : 192.168.52.96
server_name
This allows you to specify custom name for server.
This cannot be edited once created.
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
server_port
This allows you to specify the port that is used to access the ae server.
Integer
Ex: 8002
server_region
This allows you to specify place where the backup server is located.
String
Only alphanumeric characters, '-', '.' and '_' are allowed.
Ex: India
zmc_ip
This allows you to specify the IP address of the machine being used to access the ZMC console.
String
Only numbers and ' . ' are allowed.
Ex : 192.168.52.113

Update Backupset with Schedule

Screenshot of backupset_schedule_update.csv | Zmanda
Screenshot of backupset_schedule_update.csv
Caution: Please note that the input file should have the following name for the script to process it successfully “backupset_schedule_update.csv”.
  1. 1.
    The data is fed into the backupset_schedule_update.csv file. The csv file contains the following columns.
  2. 2.
    The following table gives an overview of the columns, their description, and the values expected to be entered in that specific column.
  3. 3.
    Execute the script using python3 creator.py Provide the username, password, ZMC IP address, and ZMC port. Enter option 12 to update backup-set with the new schedule id to which it is to be linked.
Column Name
Description
Values
backupset_id
Specify backupset id you want to update
Integer
Ex: 1
schedule
Specify the schedule id you want to the backupset to link to
Integer
Ex: 1
active
Activate the specified schedule or deactivate.
Enter TRUE to activate and FALSE to deactivate.
Boolean
Ex: TRUE, FALSE
You can evaluate the outcome of the operation using the results_backupset_update.csv report which provides the status of the operation. The report is generated under the results directory.
